PE 5000 Series

AUSTRALIAN RECTIFIERS

Power Supply Specialists · Est. 1987

Product Specification Sheet Document: AR-PE5000-SPEC-2026
Revision: 1.0 ·
australianrectifiers.com.au

Plating Electronic GmbH — Germany

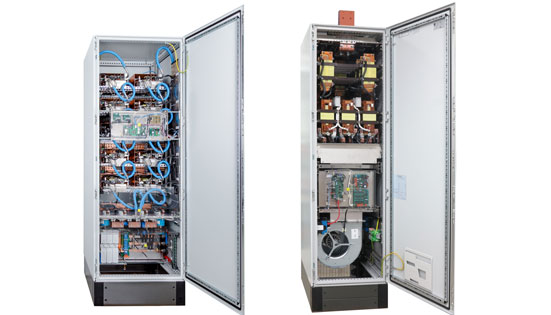

PE 5000
Series

High power IGBT rectifier. 80A–10,000A+, custom voltage, <1% ripple, water-cooled at high current. Profinet IO/IRT, EtherCAT, TCP/IP. CE/ISO certified. Exclusive AU/NZ/PNG supply.

High Power IGBT Custom Cabinet 8–12wk Lead Time

10,000A+

Max Output

<1%

Ripple

>93%

Efficiency

Profinet

Connectivity

Electrical Specifications

Output Current	80A — 10,000A+	Custom configurations available
Output Voltage	Custom — application dependent	Configured to process requirements
Input Supply	3∅, 380–480V AC, 50/60Hz	±10% tolerance
Output Ripple	<1%	Full load, CC mode
Efficiency	>93%	vs 75–85% for SCR
Power Factor	0.95	Reduces demand charges
Regulation	<0.5% CC/CV	<100ms rise time
Duty Cycle	100% continuous	24/7 rated

Available Models — Standard Configurations

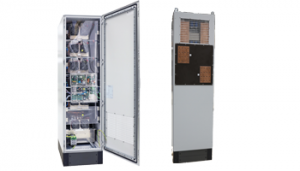

PE 5610

CurrentUp to 500A

CoolingAir

TypeStandard module

Weight~50 kg

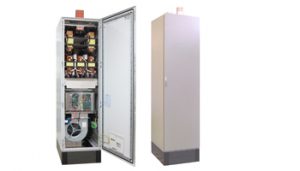

PE 5110

CurrentUp to 200A

CoolingAir

TypeCompact module

Weight~30 kg

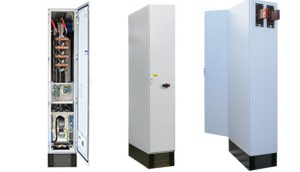

PE 5410-W

CurrentUp to 2,000A

CoolingWater

TypeWater-cooled cabinet

Weight~100 kg

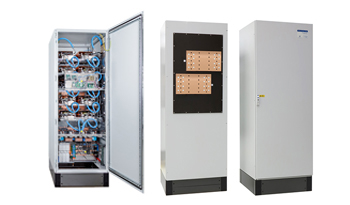

PE 5910-W

CurrentUp to 5,000A

CoolingWater

TypeHigh-power cabinet

Weight~200 kg

PE 5910-W (Rev)

CurrentUp to 5,000A

CoolingWater

TypeReverser cabinet

Weight~210 kg

Physical & Environmental

Cooling Method	Forced air / Water-cooled (W models)
Enclosure Rating	IP54
Casing Material	Stainless steel (powder-coat option)
Operating Temp.	5°C – 35°C (others on request)
Humidity	Max 85%, non-condensing

Connectivity & Control

Fieldbus	PROFIBUS-DP, RS485
Ethernet	Profinet IO/IRT, EtherCAT, TCP/IP
Analogue I/O	0–10V / 4–20mA with isolation amplifier
Control Unit	pe280-FP (panel mount)
Anodising	pe8705 colour controller (optional)
Software	pe PC software for logging & remote control
Data Cable	Standard 5m RJ45 (up to 20m)

Key Features

<1% ripple via IGBT switchmode — superior deposit quality vs 4–8% SCR

Water-cooled at high current for continuous heavy-duty operation

Polarity reversal option (PE 5910-W Reverser) for pulse reverse plating

15–25% energy savings vs SCR; custom cabinet configurations

Suitable Applications

Electroplating — chrome, nickel, zinc, copper, tin, precious metals

Anodising — Type II, III hard anodising & colour (pe8705)

Electrowinning — copper, gold, silver, lithium, critical minerals

Green hydrogen, water treatment, cathodic protection

Certifications & Standards Compliance

CE ISO 9001:2015 ERAC/RCM IP54 EN 55011 EN 61000-6-2 EN 61000-6-4 EN 62477 RoHS Low Voltage Directive 2014/35/EU

Australian Rectifiers Pty Ltd
15 Richards Road, Hoppers Crossing VIC 3029
+61 3 9369 4566 · sales@australianrectifiers.com.au
Exclusive AU / NZ / PNG distributor for Plating Electronic GmbH

Specifications subject to change without notice. Custom configurations available — contact our technical team.
All products manufactured by Plating Electronic GmbH, Rheinstr. 4, 79350 Sexau, Germany. © 2026 Australian Rectifiers Pty Ltd.

High Power IGBT Rectification for Heavy Industry

The PE 5000 Series is designed and manufactured by Plating Electronic GmbH in Germany — one of the world's leading specialists in electrochemical power supply technology since 1987. It represents the top tier of IGBT rectifier capability for the most demanding high-current industrial applications.

With output current from 80A to well beyond 10,000A through custom cabinet configurations, the PE 5000 is engineered for large-scale electrowinning, industrial electroplating, green hydrogen electrolysis, and cathodic protection systems where continuous high-current output is essential.

Water cooling at high current ensures continuous duty operation in the harshest industrial environments. The sub-1% output ripple delivers superior deposit quality, and full Profinet IO/IRT, EtherCAT, and TCP/IP connectivity enables seamless integration with modern plant control systems.

Electrowinning Electroplating Green Hydrogen Anodising Cathodic Protection Water Treatment

Quick Specification

Current Range80A – 10,000A+

Voltage RangeCustom

Output Ripple<1%

Efficiency>93%

Input Supply3-Phase, 380–480V AC

Lead Time8–12 weeks

CertificationsCE · ISO · ERAC

Receive a Quote

Parameter	Specification	Notes
Output Current Range ▾	80A — 10,000A+	Custom configurations available
PE 5610 500A PE 5110 200A PE 5410-W 2,000A PE 5910-W 5,000A PE 5910-W (Rev) 5,000A
Output Voltage	Custom — application dependent	Configured to process requirements
Input Voltage	3∅, 380–480V AC	50/60 Hz, ±10% tolerance
Output Ripple	<1%	All models, at full load, CC mode
Efficiency	>93%	All models, full load
Power Factor	0.95	Reduces facility demand charges
Regulation Accuracy	<0.5%	CC and CV mode
Current Rise Time	<100ms	0–100% output step
Duty Cycle	100% continuous	24/7 rated
Cooling Method ▾	Air / Water	Model dependent
Forced Air / Fan PE 5610, PE 5110 Water Cooled PE 5410-W, PE 5910-W, PE 5910-W (Rev)
Control Interfaces	Profinet IO/IRT, EtherCAT, TCP/IP, PROFIBUS	Via pe280-FP
Enclosure Rating	IP54	Stainless steel or powder-coated
Operating Temperature	0°C — 45°C	—
Polarity Reversal	PE 5910-W (Reverser)	Integrated polarity switching for pulse reverse plating
Weight ▾	30 kg — 210 kg	Model dependent
PE 5610 ~50 kg Forklift / hoist PE 5110 ~30 kg Forklift / hoist PE 5410-W ~100 kg Forklift / hoist PE 5910-W ~200 kg Forklift / hoist PE 5910-W (Rev) ~210 kg Forklift / hoist
Certifications	CE, ISO 9001:2015, ERAC/RCM	All applicable EN standards

High Power IGBT Technology

IGBT switching at high frequency dramatically reduces output ripple to <1% — far superior to SCR thyristor designs at 4–8%. At power levels up to 10,000A+, this directly improves deposit quality, grain structure, and reduces chemical bath degradation in heavy industrial applications.

02 Advanced Network Connectivity

Profinet IO/IRT, EtherCAT, TCP/IP, and PROFIBUS are all supported. Full SCADA and PLC integration — enables remote monitoring, data logging, alarms, and automated process control across large-scale industrial facilities.

03 Water Cooling at High Current

Water-cooled models (PE 5410-W, PE 5910-W) enable continuous high-current operation without derating. Essential for electrowinning, hydrogen electrolysis, and heavy plating where fan cooling cannot dissipate sufficient heat.

04 Polarity Reversal (PE 5910-W Rev)

Integrated polarity reversal enables pulse reverse plating directly from the rectifier — eliminates the need for external reversing contactors. Ideal for decorative chrome, PCB copper fill, and specialty alloy deposition.

05 Energy Efficiency

>93% efficiency at full load delivers 15–25% energy savings vs SCR thyristor designs. At high power levels, this translates to significant operating cost reductions — often $20,000–$50,000+ per year in electricity savings.

06 CE Certified & ERAC/RCM Compliant

All units carry CE marking, ISO 9001:2015, and full ERAC/RCM compliance to Australian electrical safety requirements. WorkSafe compliant — essential for industrial site insurance coverage.

Compatible Control Unit

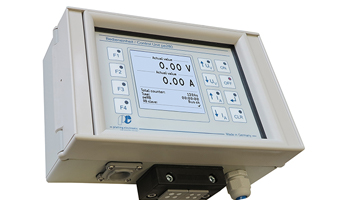

pe280-FP Digital Control Unit

Programmable panel-mount control with 3-line LCD, CC/CV modes, ramp-up sequences, amp-hour timers, and RS485. Flush panel-mount (pe280-FP) designed for integration into custom PE 5000 cabinet builds.
