Digital Control
Units

Programmable digital control units for precision rectifier management. pe280 wall/panel mount controller, pe280-FP flush panel version, pe8705 anodising colour controller, and pe8005 advanced process controller. RS485, PROFIBUS, Profinet connectivity.

Digital Control Programmable Available

4 Models

Product Range

RS485

Standard Comms

LCD

Display Type

PROFIBUS

Fieldbus Option

Profinet

Ethernet Option

0–10V

Analogue I/O

Available Models — All Configurations

pe280

MountWall mount

Dimensions240 x 170 x 85mm

Weight1.3kg

DisplayLCD 3-line

CommsRS485

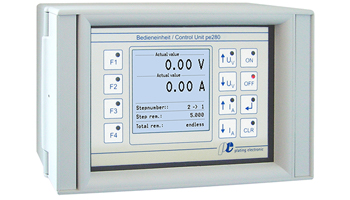

pe280-FP

MountFlush panel mount

Dimensions240 x 170 x 85mm

Weight1.3kg

DisplayLCD 3-line

CommsRS485

pe8705

TypeColour controller

Dimensions370 x 340 x 170mm

Weight5.5kg

FunctionAnodising colour seq.

CommsRS485, PROFIBUS

pe8005

TypeProcess controller

Dimensions370 x 340 x 170mm

Weight5.5kg

FunctionAdvanced process ctrl

CommsRS485, Profinet

Connectivity & I/O Specifications

Serial Comms (Standard)	RS485	All models — standard interface
Fieldbus Options	PROFIBUS DP, CC-Link, DeviceNet	Optional modules
Ethernet Options	TCP/IP, Profinet IO/IRT, EtherCAT	Optional modules
Analogue I/O	0–10V / 4–20mA	With isolation amplifier
Data Cable	RJ45, 5m standard	Up to 20m available
PC Software	pe PC software suite	Logging, remote control, configuration

Key Features

Programmable ramp-up and soft-start sequences

Amp-hour timers for process control

Automatic periodic polarity reversal

Multi-step programme sequences (pe8705/pe8005)

Colour anodising sequencing with pe8705

Full SCADA and PLC integration capability

Compatible Rectifiers

PE 1000 Series — compact IGBT switchmode

PE 3000 Series — mid-range IGBT switchmode

PE 4000 Series — flagship high-current IGBT

PE 5000 Series — high power IGBT

All Plating Electronic rectifier models

Australian Rectifiers Pty Ltd
15 Richards Road, Hoppers Crossing VIC 3029
+61 3 9369 4566 · sales@australianrectifiers.com.au
Exclusive AU / NZ / PNG distributor for Plating Electronic GmbH

Specifications subject to change without notice. Custom configurations available — contact our technical team.
All products manufactured by Plating Electronic GmbH, Rheinstr. 4, 79350 Sexau, Germany. © 2026 Australian Rectifiers Pty Ltd.

Precision Digital Control for Every Application

The Plating Electronic digital control unit range provides comprehensive rectifier management — from the compact pe280 wall-mount controller for standard plating operations to the pe8705 colour anodising sequencer and pe8005 advanced process controller for complex multi-step processes.

All units feature RS485 communication as standard, with optional PROFIBUS, Profinet, and TCP/IP modules for full SCADA and PLC integration. Analogue I/O (0-10V / 4-20mA) enables integration with legacy systems and external sensors.

Key process features include programmable ramp-up sequences, amp-hour timers for precise dosing control, automatic periodic polarity reversal, and multi-step programme sequences — all accessible via the front-panel LCD or remotely through the pe PC software suite.

Electroplating Control Anodising Sequencing SCADA Integration Process Automation

Quick Specification

Modelspe280, pe280-FP, pe8705, pe8005

Standard CommsRS485

DisplayLCD 3-line

Fieldbus OptionsPROFIBUS, CC-Link

Ethernet OptionsTCP/IP, Profinet

Analogue I/O0-10V / 4-20mA

Receive a Quote

Parameter	pe280 / pe280-FP	pe8705 / pe8005
Mounting	Wall / Flush panel	Desktop / Panel
Dimensions	240 x 170 x 85mm	370 x 340 x 170mm
Weight	1.3kg	5.5kg
Display	LCD 3-line	LCD multi-line
Standard Comms	RS485	RS485
Fieldbus Options	PROFIBUS DP, CC-Link, DeviceNet	PROFIBUS DP, Profinet
Ethernet Options	TCP/IP, Profinet, EtherCAT	TCP/IP, Profinet, EtherCAT
Analogue I/O	0-10V / 4-20mA	0-10V / 4-20mA
Special Features	Ramp-up, Ah timers, polarity reversal	Colour sequencing, multi-step programmes
PC Software	pe PC software suite	pe PC software suite
Data Cable	RJ45, 5m (up to 20m)	RJ45, 5m (up to 20m)
Compatible Rectifiers	All PE series	All PE series

1 Complete Rectifier Management

The digital control unit range provides everything needed for precision rectifier management — from basic manual control and monitoring through to fully automated multi-step process sequences. All units connect to PE series rectifiers via standard RJ45 cable and RS485 communication, with upgrade options to PROFIBUS, Profinet, and TCP/IP for full plant integration.

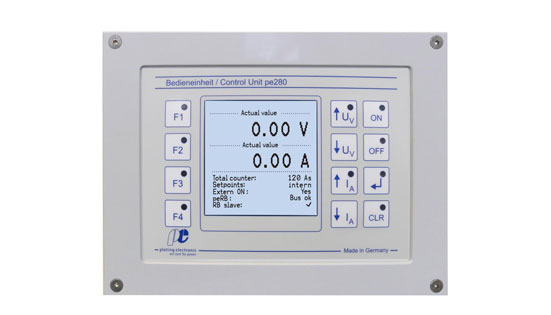

2 pe280 Wall/Panel Controller

The pe280 is the standard control unit for PE series rectifiers. Compact 240x170x85mm design with 3-line LCD display. Wall-mount or pe280-FP flush panel mount versions. Programmable ramp-up, amp-hour timers, and RS485 communication.

3 pe8705 Colour Anodising Controller

Purpose-built for anodising colour sequencing operations. Automatically controls multi-step colour sequences with precise current/voltage profiles and timing. Ensures consistent colour quality across batches.

4 pe8005 Advanced Process Controller

The most capable unit in the range — designed for complex multi-step electrochemical processes. Advanced programme sequencing, data logging, and full process automation capability for demanding industrial applications.

5 Amp-Hour Timers

Built-in amp-hour metering and timers enable precise dosing control — essential for consistent plating thickness and bath chemistry management. Set target amp-hours and the system automatically controls the process endpoint.

6 Full Network Connectivity

RS485 standard on all models, with optional PROFIBUS DP, Profinet IO/IRT, TCP/IP, EtherCAT, and CC-Link modules. Enables full SCADA, PLC, and MES integration for Industry 4.0 capability.

7 Programmable Ramp-Up

Soft-start and programmable ramp-up sequences protect both the rectifier and the workpiece. Essential for sensitive plating processes where sudden current application would cause defects.

8 pe PC Software

Comprehensive Windows-based software for remote monitoring, configuration, data logging, and trend analysis. View real-time operating parameters, download historical data, and configure unit settings from any networked PC.
