Mid-range IGBT switchmode rectifier — robust, network-ready DC power for electroplating, anodising, and electrowinning applications.
| Output Current | Up to 3,000A | Model dependent |
| Output Voltage | 6V / 8V / 9V DC | Model dependent |
| Input Supply | 3∅, 380–480V AC, 50/60Hz | ±10% tolerance |
| Output Ripple | <1% | Full load, CC mode |
| Efficiency | >92% | vs 75–85% for SCR |
| Power Factor | 0.95 | Reduces demand charges |
| Regulation | <0.5% CC/CV | 2–100% range |
| Duty Cycle | 100% continuous | 24/7 rated |

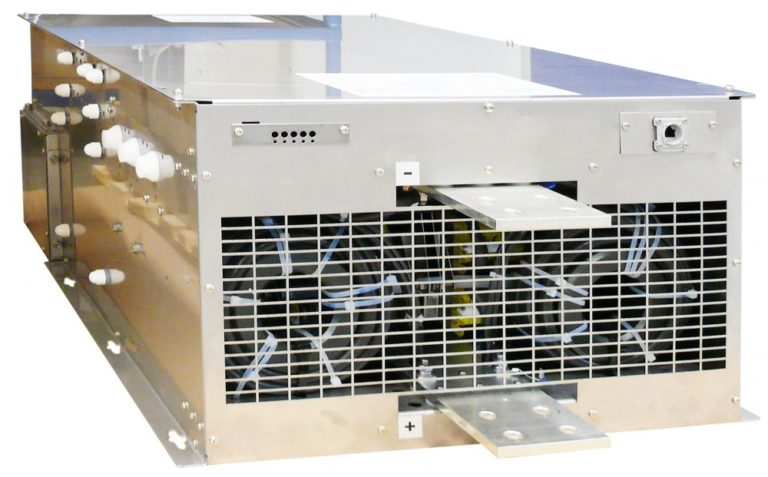

| Cooling Method | Forced air / Water option (PE 3000-9) |
| Enclosure Rating | IP54 |
| Casing Material | Stainless steel (powder-coat option) |
| Operating Temp. | 5°C – 35°C (others on request) |
| Humidity | Max 85%, non-condensing |
| Fieldbus | RS485, PROFIBUS-DP |
| Analogue I/O | 0–10V / 4–20mA with isolation amplifier |
| Control Unit | pe280 (wall/panel mount), pe280-FP |
| Anodising | pe8705 colour controller (optional) |
| Software | pe PC software for logging & remote control |
| Data Cable | Standard 5m RJ45 (up to 20m) |
The PE 3000 Series is designed and manufactured by Plating Electronic GmbH in Germany — delivering mid-range DC power with the same IGBT switchmode technology found in the PE 4000 and PE 5000 flagship lines. Purpose-built for electroplating, anodising, and electrowinning operations that require reliable, low-ripple output.

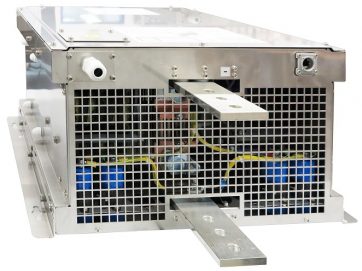

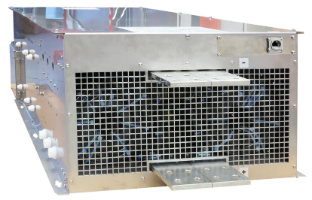

With three models covering 1,000A to 3,000A, the PE 3000 fills the gap between compact bench-top units and heavy industrial cabinets. RS485 and PROFIBUS connectivity comes standard on every model, enabling full PLC and SCADA integration from day one.
The sub-1% output ripple delivers superior deposit quality, finer grain structure, and tighter thickness tolerances compared to conventional SCR thyristor designs that typically produce 4–8% ripple.
Tell us your application, required current, and voltage — our technical team will respond within 1 business day with pricing and specification recommendations.
