Programmable amp hour meter for precise electroplating process control. Digital display, programmable limit, alarm output — compatible with all PE series rectifiers.
| Model | AHM-804 | Programmable amp hour meter |
| Display | Digital LED | High-visibility readout |
| Amp-Hour Limit | Programmable | User-settable target |
| Alarm Output | Relay contact | Configurable alarm action |
| Input Signal | DC shunt (mV) | Standard DC current shunt |
| Supply Voltage | 240V AC, 50Hz | Standard Australian mains |
| Mounting | Panel mount | Standard DIN cutout |
| Compatibility | All PE series | PE 1000 through PE 5000 |

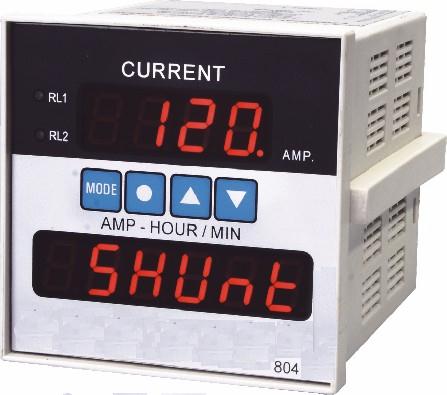

The AHM-804 programmable amp hour meter provides accurate measurement and control of electroplating deposit thickness. By monitoring the total amp-hours delivered during plating, the AHM-804 ensures consistent coating thickness across every batch.
Set your desired amp-hour target via the front panel and the AHM-804 will automatically trigger an alarm relay when the limit is reached — enabling automatic process termination or operator notification. The bright digital LED display provides real-time monitoring visible across the workshop floor.
Fully compatible with all PE series rectifiers from Australian Rectifiers, the AHM-804 connects via standard DC current shunt and integrates seamlessly into existing plating lines.
Tell us about your plating process and we'll recommend the right configuration. Our technical team responds within 1 business day.
